REPRESENTATIVES

Elektronika



Elektronika

Our company is the Türkiye distributor of Elektronika products within KESİR. Since its establishment in 1952, Elektronika has been engaged in research, development, production, distribution of telecommunication equipment and systems. Working with Deutsche Telecom company and Budapest Technical University, Elektronika develops suitable and high quality cable limiters, diagnostic devices, PLC and FDM tests for customers.

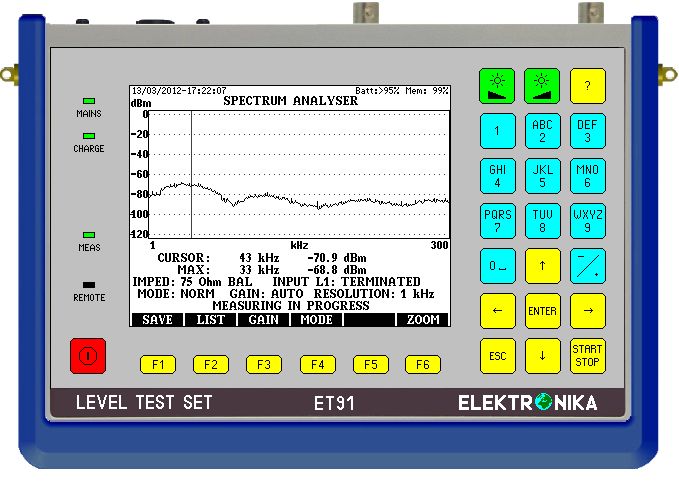

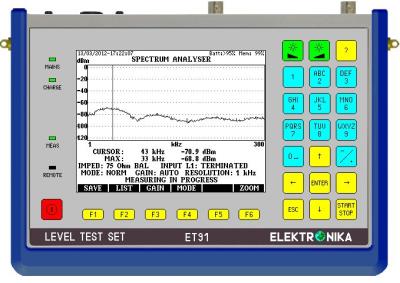

ET-91 Click for PDF File

Four Instruments in One

  • Level Meter: for selective and wideband level measurements with auto ranging.
  • Generator: for the generation of measuring voltage for the test of FDM systems.
  • Bridge: for the measurement of input and output parameter.
  • Spectrum Analyzer: for the test of output PSD, cross-talk and other interference signals.

Level Meter

  • Comfortable receiver frequency setting modes like: CARRIER+TONE or CARRIER-TONE.
  • Special generator (Tx) frequency tracking modes like: CARRIER+Tx or CARRIER-Tx.
  • In selective receiving mode five special bandwidths are provided: 20, 200, 1740, 1950 and 3100 Hz.
  • Selective level measurement of multi tone test signal(MTTS).

Generator

  • Generation of quartz accurate test signal with a resolution of 1 Hz.
  • Generation of multi tone test signal (MTTS).
  • Generation of test signal in sweep mode.

Bridge

  • LCL balance versus frequency.
  • Impedance versus frequency.
  • Return Loss versus frequency.

Noise Level Meter

  • Psophometric noise measurement in speech channels according to ITU-T Rec. O.41.
  • Wideband noise measurement with 8 selectable filters.
  • Long time impulse noise measurement up to 72 hours.

End to End Measurements

  • Master-Slave cable parameter measurements like: Loss, Balance, Impedance, Ret. Loss and XTALK
  • Group Delay Distortion.
  • Micro Interruption
  • Phase Jitter & Frequency Error Measurement.

Displaye

  • 320 x 240 dot graphic LCD display with backlight.
  • Selectable English, German or Russian languages.

Hardware Options

  • Coaxial external 40 dB attenuator.
  • Balanced external 40 dB attenuator.



ETDR 10B Click for PDF File

For Low Voltage Energy and Unloaded Telecom Cables

  • Small size and easy to use.
  • Large color LCD display providing crystal clear wave forms.
  • Suitable for using in the field at different weather conditions.
  • Automatic fault detection.
  • Automatic cross talk point detection.
  • Automatic propagation velocity calculation.
  • Four selectable impedances.
  • 100 memories for waveform and setting storage.
  • Cable library for standard and user defined cable types.
  • Unit adjustment between V/2 and VOP.
  • Results can be transferred to PC via USB port, WLAN.
  • Result transfer formats: res, htm, pdf and csv.
  • Immediate print screen in bmp format.

Measuring Modes

  • L1 CONTINUOUS.
  • L1 SINGLE.
  • L1 AUTO.
  • L1 LONG TIME.
  • L2 CONTINUOUS.
  • L1 & L2.
  • L1 - L2.
  • L1 & MEMORY.
  • L1 - MEMORY.
  • XTALK.
  • XTALK AUTO.

Display

  • Zoom for detailed examination.
  • 5' color TFT LCD display with backlight.
  • Selectable English, German or Russian languages.

Hardware Options

  • ES 2002A Loop Pulsing Device to identify the end of voltage less cables.
  • ELP 400 Loop Pulsing Device to identify the end of living cables.
  • ECA 10 Coaxial adapter.
  • EBF 20 Blocking filter to isolate High Voltage and low frequency disturbing signals.
