Orion Telecom Networks Inc is a US-Arizona company. Incorporated in 1999, our team of skilled professionals have for over 15 years established Orion as a reliable supplier of telecom equipment to a vast spectrum of customers around the globe. Every day, we assist our customers in building the best and most cost effective networks in the Power, Telecom, Aviation, SCADA and various other sectors around the world.
We are distributing the Orion brand for more than 5 years as a Kesir. Within this scope, we have provided services in many projects with our products according to the specifications of Teias or private sector and our support and services in this area are continuing.

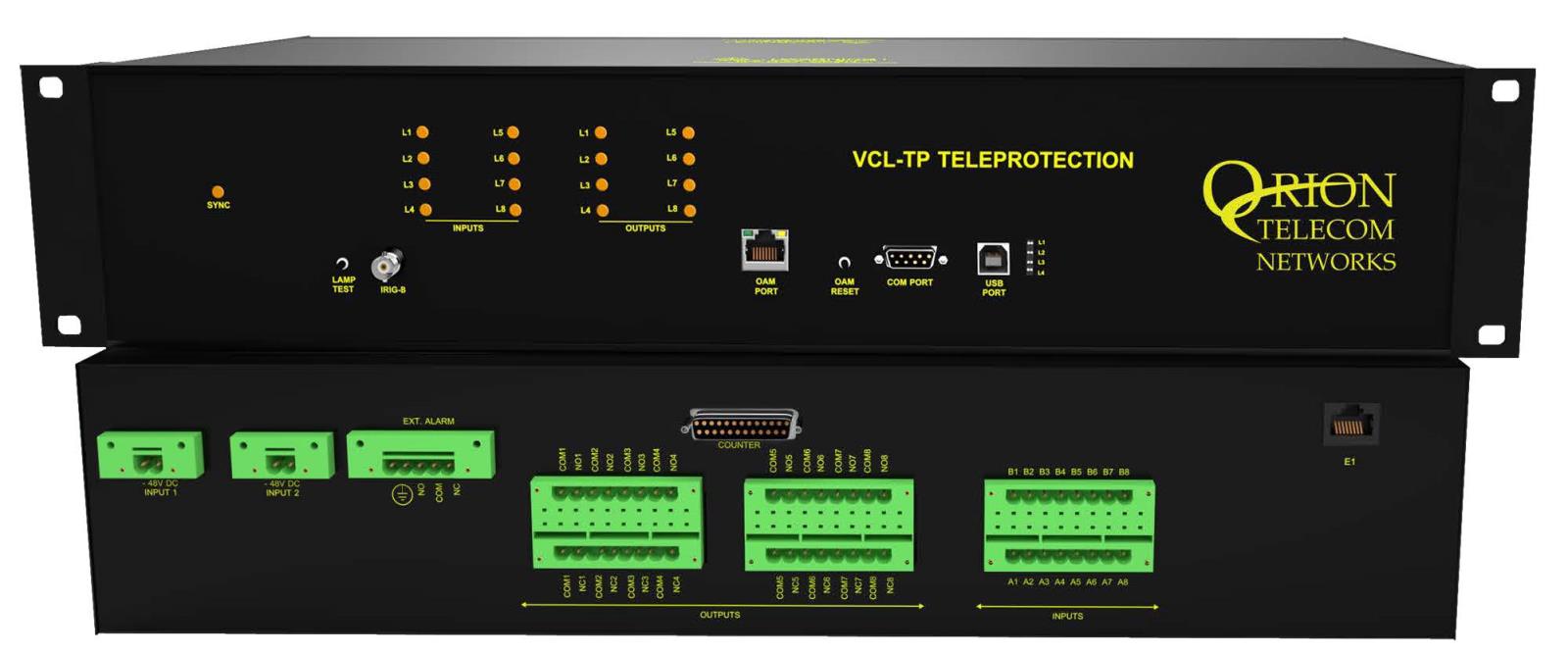

1-VCL-TP Teleprotection Click for PDF file
VCL-TP Teleprotection is a highly reliable and user-friendly product. It is used for protection systems between two substations or between the power station and the switchboard.
The VCL-TP, Teleprotection Equipment offers a choice of transmission interfaces which include the IEEE C37.94 compliant optical fiber interface for transmission over Multi-Mode and Single Mode Optical Fiber pairs, as well as the G.703, 64Kbps co-directional digital data interface and the 2.048Mbps E1 interface options.
Features and Highlights
- Compact, standard 19-Inch Rack-mountable, 2U high chassis.
- Bi-directional Transmission of 8 command Inputs and 8 command outputs
- Automatic loop test facility
- User programmable interface program.
- Compliant with IEC 60834-1 standards
- IEEE C37.94 compliant Multi-Mode optical link interface option for short reach optical links
- IEEE C37.94 compliant (modulation only) Single Mode optical link interface option for long reach optical links (≤ 40 KM, ≤ 80 KM, ≤ 120 KM, ≤ 200 KM)
- 64Kbps, G.703 co-directional interface option.
- 2.048Mbps, G.703 interface option.
- Available in 24V DC, 48V DC, 110V DC, 220V DC and 250V DC configurations.
2-VCL-GPS - Reference Series
The VCL-GPS Receiver is specially designed. It can also be used by other public service companies that do not require a high-precision time and frequency synchronization locked on a GPS reference only in Railroads, Airports, Energy generation-distribution plants from Telecommunication companies.
The VCL-GPS Receiver provides synchronization in G.811 / Stratum 1 quality standards. The GPS receiver is equipped with an integrated GPS receiver and a high-precision, low-noise OCXO / Rubidium oscillator. This ensures a high stability when GPS signal or antenna error occurs.
Grandmaster Clocks supports IEEE-1588 PTP Version 2, providing nanosecond time and frequency synchronization for the connected network environment. Grandmaster Clocks does not only provide a high-precision synchronization source for PTP networks, but also provides ToD (Time of Day) and Frequency Synchronization. Supported options include IRIG-B, 1 PPS, NMEA, 1/5/10 MHz, 2.048 MHz, 2.048 Mbits clock outputs. OCXO and Rubidium Holdover Clock are available.
NTP Server - VCL-2156 Click for PDF file
The Rapidox SF₆ 6100 Pump Back is the latest in fully-automatic gas analysers, designed for controlling and monitoring the quality of SF₆ in medium & high voltage gas insulated electrical equipment. Exceptional accuracy and stability are provided when measuring the purity of SF₆ gas, through specially selected sensors.

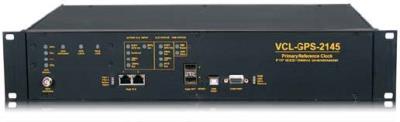

VCL-GPS-2145 GPS Click for PDF file

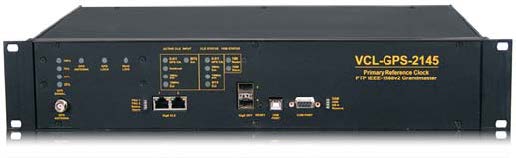

VCL-2145 (VCL-GPS-2145), GPS Primary Reference Clock with IEEE-1588v2 Grandmaster and NTP Server is a high precision multi-service, time and frequency synchronization solution which can be used to provide ITU-T, G.811 Primary Reference Clocks which are referenced to a GPS source, as well as to synchronize the time-of-day and frequency across multiple nodes of the network. The VCL-2145 (VCL-GPS-2145) Receiver also has an integrated, high bandwidth NTP Server engine that is capable of handling up to 7200 NTP requests per second. Multiple IRIG-B Outputs are also provided to synchronize local clock (time of- day) display units as well as RTUs to a central timing source with nanosecond accuracy.

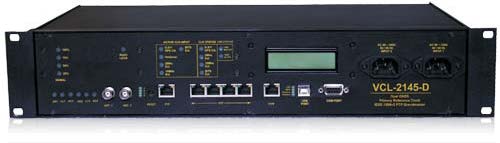

VCL-GPS-2145-D Click for PDF file
VCL-2145 (VCL-2145-D) is a high-performance, high-reliability GPS / GNSS Primary Reference Clock and IEEE-1588v2 PTP Grandmaster that provides ITU-T G.811 Primary Synchronization Frequency References which are locked to a user selected Satellite source. The VCL-2145 (VCL-2145-D) Satellite Receiver also has an integrated, high bandwidth NTP Server engine that is capable of handling up to 4500 NTP requests per second. Multiple IRIG-B Outputs are also provided to synchronize local clock (time-of-day) display units as well as RTUs to a central timing source with nanosecond accuracy. The VCL-2145 (VCL-2145-D), Primary Reference (PRC) Clock is specifically designed for frequency synchronization of 2G, 3G, HetNet and LTE mobile telecommunications networks as well as backhaul wire-line SDH / SONET and Synchronous Ethernet networks. It may be also used by Railways, Airports (and air-traffic control), Power generation and distribution companies and other Utility companies who not only require highly precise G.811 frequency synchronization locked to a GPS Reference but who also need to provide an accurate time-of-day reference in their networks.

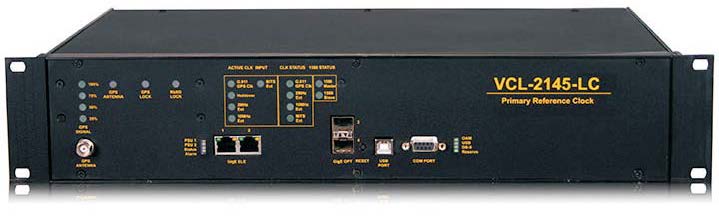

VCL-GPS-2145-LC Click for PDF file
VCL-2145-LC (VCL-GPS-2145) IEC CE FCC , GPS Primary Reference Clock is a high precision frequency synchronization solution which may be used to provide ITU-T, G.811 Primary Reference Clocks which are referenced to aGPSsource. The VCL-2145-LC (VCL-GPS-2145), GPS Primary Reference (PRC) Clock is specifically designed for frequency synchronization of 2G, 3G, HetNet and LTE mobile telecommunications networks as well as backhaul wire-line SDH / SONET and Synchronous Ethernet networks. It may be also used by Railways, Airports (and air-traffic control), Power generation and distribution companies and other Utility companies who require a highly precise G.811 frequency synchronization locked to aGPSReference. The VCL-2145-LC (VCL-GPS-2145) locks to a GPS reference to provide multiple G.811 / Stratum 1 quality frequency outputs. The VCL-2145-LC is also equipped highly accurate, low-noiseOCXO/ Rubidium oscillator which provides a high stability, ITU-T G.812 compliant holdover clock that is typical of a Network SSU in the event of unavailability of theGPSsignal, orGPSantenna failure.
