Enervac Click for PDF File
Enervac is a company with customers all over the world and it satisfies the needs of its customers with the top quality and high technology products having the features of transformer oil and SF6 gas discharge, purification, storage, and re-filling. And now Enervac products are available in Turkey with the profound experience that KESİR MÜHENDİSLİK provides. As well as products that can operate with the most efficient, economic, and reliable way, with different optional features you can have products that satisfy your needs.
ERFU-2 Click for PDF file
- It is suitable for low volume SF6 applications since it is small and portable.
- For air, vacuum pump performance is 6 CFM (10 m3/h) < 0,03 mbar.
- Thanks to its 3 way valve, it can easily move between its discharge and filling modes.
- With its easy utilization, it is userfriendly.
GTU Click for PDF file
- Small, portable and easy to use.
- Provides gas purification to any external SF6 tube.
- When connected to high pressure tubes, you do not need any groove to connect directly.
- When the pressure reaches the maximum level, the machine turns off the system by automatic shut-off.
- Provides purification of SF6 gas instead of any storage.
GAS STORAGE TANK Click for PDF file
SF6 gas storage tanks with capacities between 135 kg and 1800 kg which you can see the gas parameters on them.

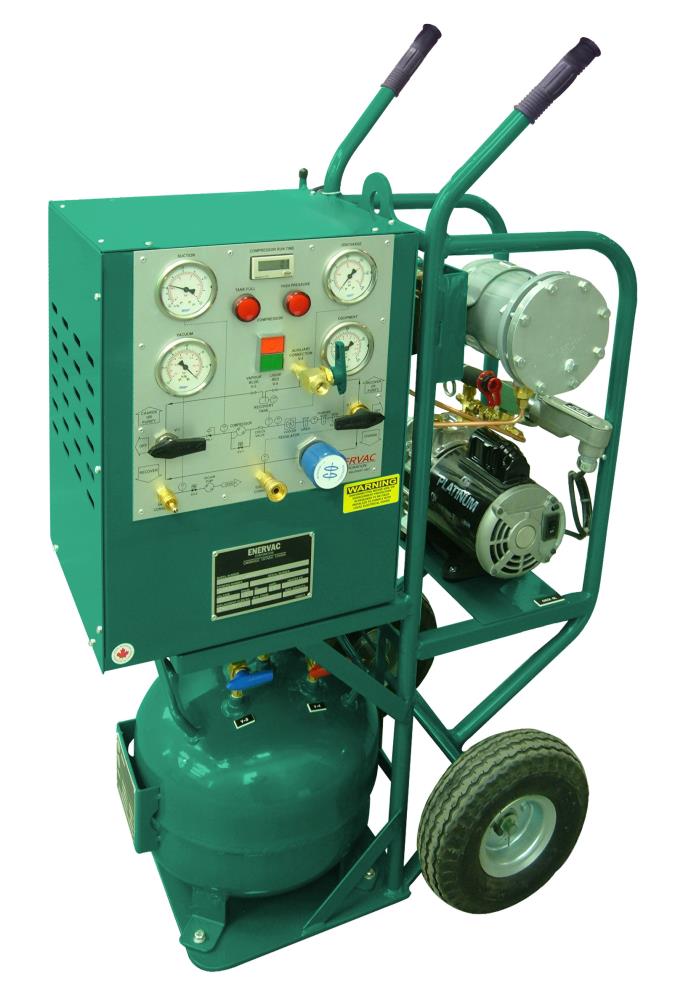

GRU-4 SERIES Click for PDF file
- Even under hot climatic conditions, the device liquefies and purifies the SF6 gas and is suitable for low volume SF6 applications with 1000 psig pressure.
- It purges air and moisture from SF6 gas before filling.
- It can store SF6 gas in its own internal tube and can also press external tubes in liquid state.
- Recondition the SF6 gas by purification.
- It is suitable for use up to 69 kV circuit breakers.
- It is able to transfer 8,5 kg of SF6 gas per hour.
- It is easy to use with the portable wheel mechanism.
GRU-7 Click for PDF file
- It purges air and moisture from SF6 gas before filling.
- It can store SF6 gas in its own internal tube and can also press external tubes in liquid state.
- Recondition the SF6 gas by purification.
- It is suitable for use up to 132 kV circuit breakers.
- It is able to transfer 25 kg of SF6 gas per hour.
- It has a SF6 gas purification rate of 99.6% to 99.9%.
- Performance of the vacuum pump is 10CFM (17m3/hour)< 1mbar.

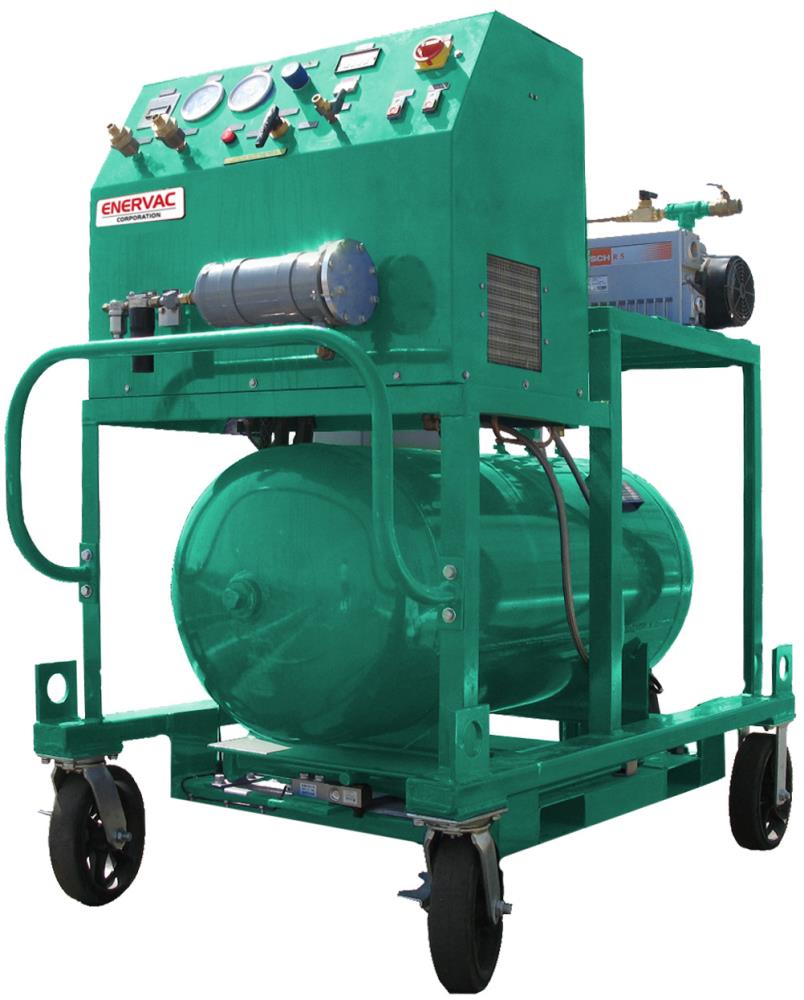

GRU-8 Click for PDF file
- Higher model for users who demand more performance and higher storage space.
- It has ability to purge, purification and pump SF6 gas through the system.
- The purified SF6 gas passes through the purification process twice.
- It has a SF6 gas purification rate of 99.6% to 99.9%.
- It is suitable for use up to 256 kV circuit breakers.
- It is able to transfer 25 kg of SF6 gas per hour.
- There is a SF6 tube with a capacity of 160 kg (Optionally 300 kg).
- It is capable of transfer 25 kilograms of SF6 gas per hour.
- PLC controlled and touch screen.

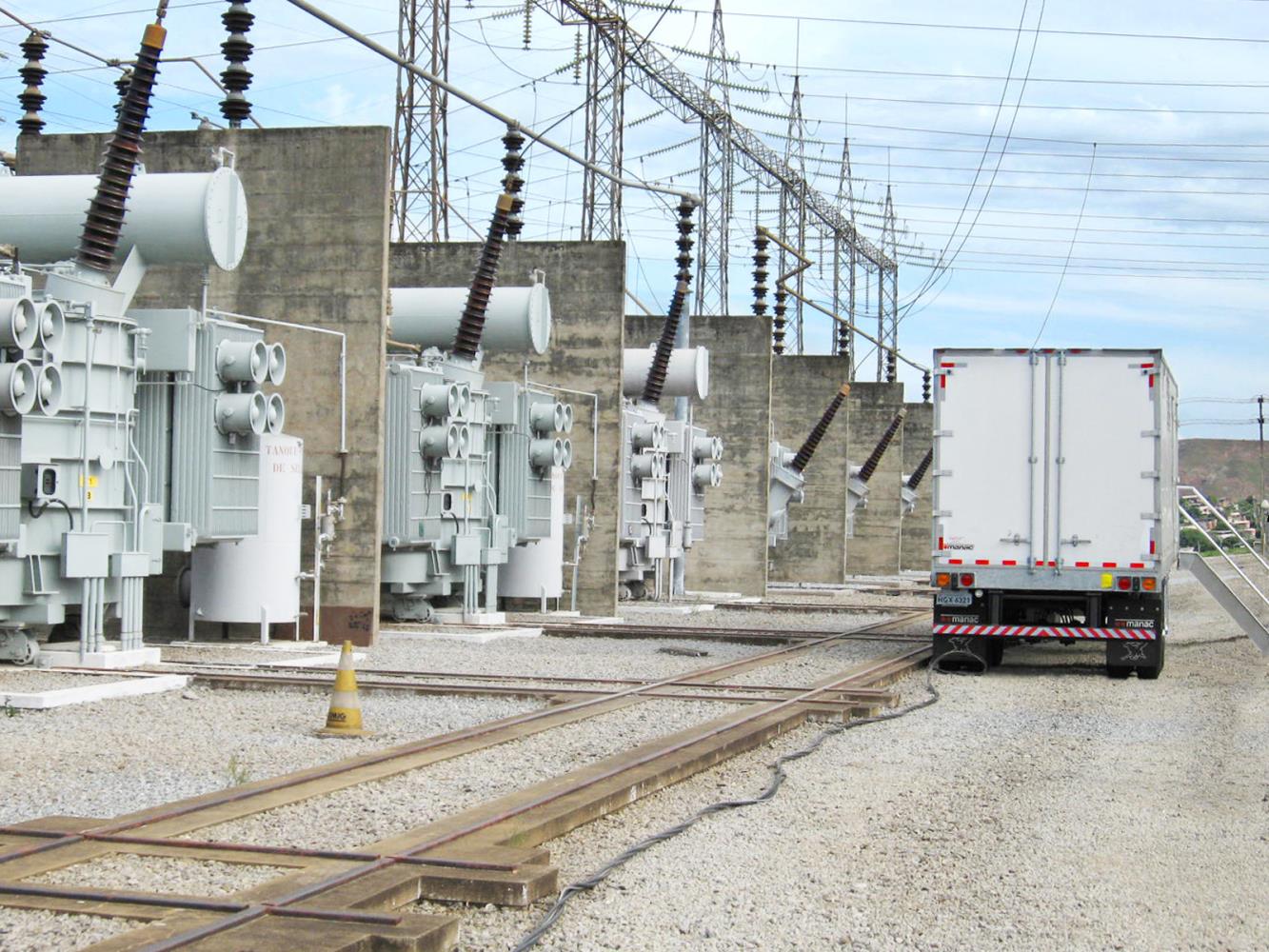

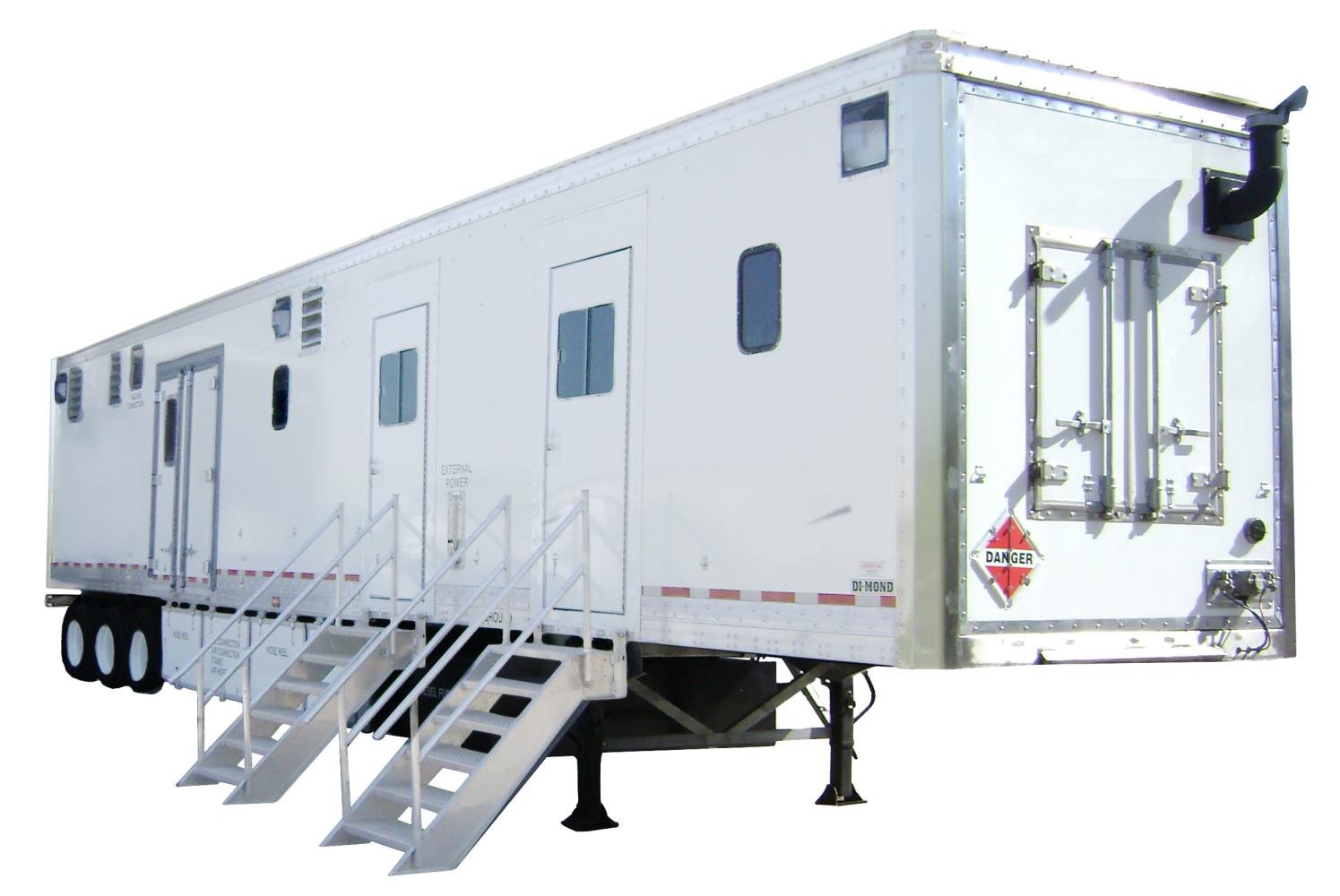

SF6 Gas Vehicle Pdf Dosyası için Tıklayınız
SF6 Gas Vehicle; provides economical, safe, fast and efficient regeneration of SF6 gas in many places and applications where SF6 is used as an insulator such as HV Metal Clads, Switchgears, Busbars, accelerators, circuit breakers and transformers.
- Purifies SF6 gas at 0.5 micron level, dries and filters.
- Can work with internal or external storage system.
- When the pressure reaches the maximum level, the machine turns off the system by automatic shut-off.
- Can be controlled automatically by manual operation or PLC.
